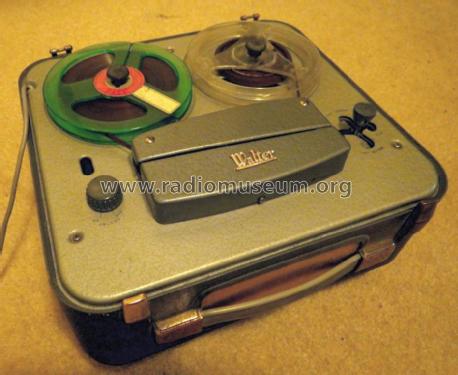

101; Walter Instruments (ID = 1660114) R-Player
Walter Instruments: 101 [R-Player] ID = 1660114 933x763
Select picture or schematic to display from thumbnails on the right and click for download.
For model 101, Walter Instruments Ltd; Morden:
Edited from ebay 111341822341 c..o..w..

Country:  Great Britain (UK)
Manufacturer / Brand:  Walter Instruments Ltd; Morden
Year: 1956 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: ECC83 ECL82 EZ80 DM70
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 101 - Walter Instruments Ltd; Morden
Shape Tablemodel, with any shape - general.
Notes Single speeed (3 3/4) portable tape recorder, 5in spools, twin track. Bias oscillator 85Khz, permanant magnet erasing. Play time 2 x 30 minutes with 600 ft standard tape.
Source of data -- Schematic
Literature/Schematics (1) Paul Stennings DVD.

Model page created by Keith Staines. See "Data change" for further contributors.
