Gamma II (2)

Gamma II ; Wandel & Goltermann; (ID = 2493049) Car Radio Gamma II ; Wandel & Goltermann; (ID = 2493054) Car Radio
Gamma II ; Wandel & Goltermann; (ID = 2493050) Car Radio Gamma II ; Wandel & Goltermann; (ID = 2493051) Car Radio
Gamma II ; Wandel & Goltermann; (ID = 2493052) Car Radio Gamma II ; Wandel & Goltermann; (ID = 2493053) Car Radio
Gamma II ; Wandel & Goltermann; (ID = 2493055) Car Radio Gamma II ; Wandel & Goltermann; (ID = 168866) Car Radio
Use red slider bar for more.

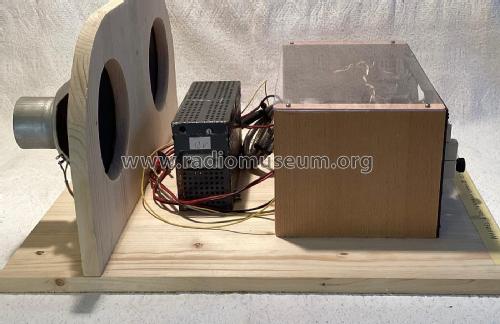

Gamma II ; Wandel & Goltermann; (ID = 2493049) Car Radio
Wandel & Goltermann;: Gamma II [Car Radio] ID = 2493049 1400x635
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gamma II (2), Wandel & Goltermann; Reutlingen

Country:  Germany
Manufacturer / Brand:  Wandel & Goltermann; Reutlingen
alternative name

Wago Wandel & Goltermann
Year: 1951–1954 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: ECH42 EAF42 EAF42 EL41 EL41
Semiconductors (the count is only for transistors) Zerhacker
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12/24 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Gamma II - Wandel & Goltermann;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 830 x 150 x 165 mm / 32.7 x 5.9 x 6.5 inch
Notes Omnibus-Radio-Anlage. Mikrofon-Anschluß, Tonabnehmer- bzw. Bandanschluß; Kontroll-Lautsprecher; bis zu 8 Lautsprecher anschließbar (9 W).
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Price in first year of sale 825.00 DM
External source of data E. Erb 3-907007-36-0
Source of data HdB d.Rdf-& Ferns-GrH 1953/54 / Radiokatalog Band 2, Ernst Erb
Mentioned in Historische Radios Band IV (130B)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
