11305 "Symphonette"

11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 446138) Radio

11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 831226) Radio

11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 831228) Radio

11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 831230) Radio

11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 831231) Radio
11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 831225) Radio 11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 1185045) Radio
11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 1198445) Radio 11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 1831418) Radio
11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 1831419) Radio 11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 1831420) Radio
11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 1831421) Radio 11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 1831422) Radio
Use red slider bar for more.
11305 'Symphonette' ; Warwick Mfg. Corp., (ID = 831225) Radio
Warwick Mfg. Corp.,: 11305 "Symphonette" [Radio] ID = 831225 933x799
Select picture or schematic to display from thumbnails on the right and click for download.
For model 11305 'Symphonette', Warwick Mfg. Corp., Chicago (Clarion):
SAMS Photofact

Country:  United States of America (USA)
Manufacturer / Brand:  Warwick Mfg. Corp., Chicago (Clarion)
alternative name

Templeton
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12SA7 12SK7 12SQ7 50L6
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 11305 "Symphonette" - Warwick Mfg. Corp., Chicago
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 17.375 x 13 x 17 inch / 441 x 330 x 432 mm
Notes Selenium Rectifier.
Photofact see under Trade name: Clarion. Tunes 540 to 1712 kc.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before

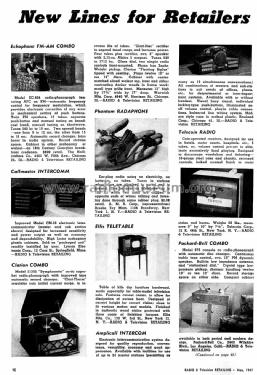

Mentioned in Radio Retailing (Radio & Television R.) (March 1947 p. 12. May 1947 p. 46.)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 18, Folder 478-11)


All listed radios etc. from Warwick Mfg. Corp., Chicago (Clarion)
Here you find 471 models, 73 with images and 435 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
