- United States of America (USA)
- Manufacturer / Brand
- Warwick Mfg. Corp., Chicago (Clarion)
- 1951 ??
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- alternative name: Templeton

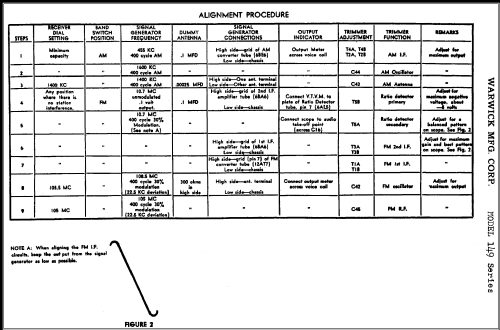

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.25 inch = 15.9 cm
- from Radiomuseum.org
- Model: 149 series - Warwick Mfg. Corp., Chicago
- Tablemodel, with any shape - general.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
