• Country
• United States of America (USA)

• Manufacturer / Brand
• Warwick Mfg. Corp., Chicago (Clarion)

• Year
• 1942 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65040

• • alternative name: Templeton

Click on the schematic thumbnail to request the schematic as a free document.

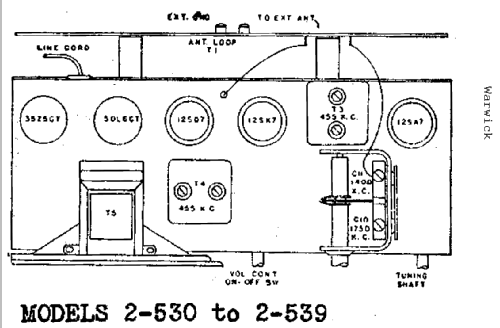

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 2-535 Ch= 2-53 - Warwick Mfg. Corp., Chicago

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14.25 x 10.5 x 6.25 inch / 362 x 267 x 159 mm

• Notes

• Built in loop antenna. Broadcasts from 538 to 1620 kc.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Literature/Schematics (1)
• Riders 13-6, 10

• Literature/Schematics (3)
• Clarion Folder.

• Other Models

• Here you find 472 models, 77 with images and 435 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Warwick Mfg. Corp., Chicago (Clarion)
