2-610 Ch= 2-61
- United States of America (USA)
- Manufacturer / Brand
- Warwick Mfg. Corp., Chicago (Clarion)
- 1942 ?
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- alternative name: Templeton

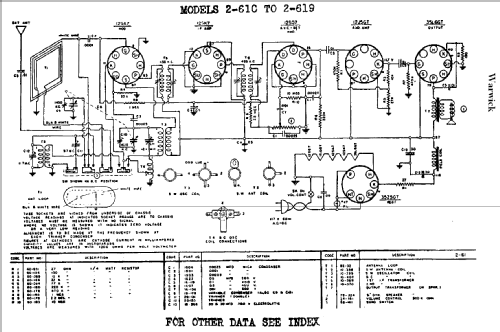

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- from Radiomuseum.org
- Model: 2-610 Ch= 2-61 - Warwick Mfg. Corp., Chicago
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Literature/Schematics (1)
- Riders 13-7, 9
