Troubador 2-701 (2701)
Warwick Mfg. Corp., Chicago (Clarion)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Warwick Mfg. Corp., Chicago (Clarion)
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 168130
-
- alternative name: Templeton
Scanned from the Warwick Troubador Folder.
Scanned from the Warwick Troubador Folder.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Troubador 2-701 - Warwick Mfg. Corp., Chicago
- Shape

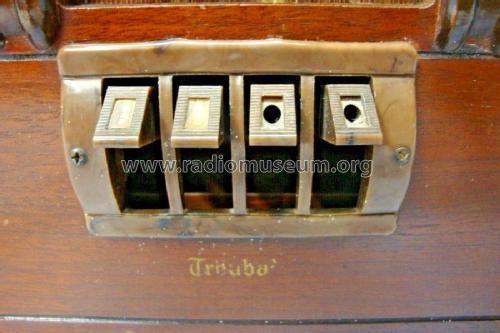

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 16 x 10.5 x 7 inch / 406 x 267 x 178 mm
- Notes
-
Riders index points to 13-4 and 13-10, but there is no such model found.
Range: 540-1630 kc broadcast plus SW 8.9 - 12.1 mc. Spread band tuning for 25 and 31 meter band for foreign ultra-fine shortwave reception, slide rule dial, AVC, electrodynamic speaker, Troubascope loop aerial.
Details about the whole family of Troubador's see here.
