• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1948–1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98186

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6NK7 6Q7 6V6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-222 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

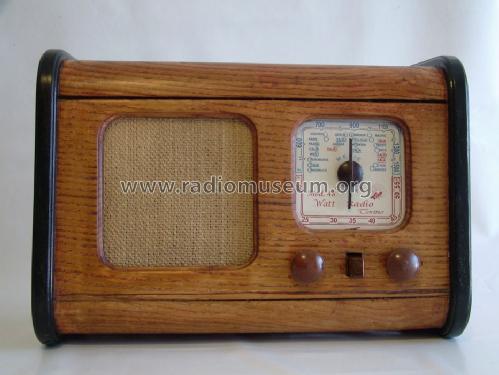

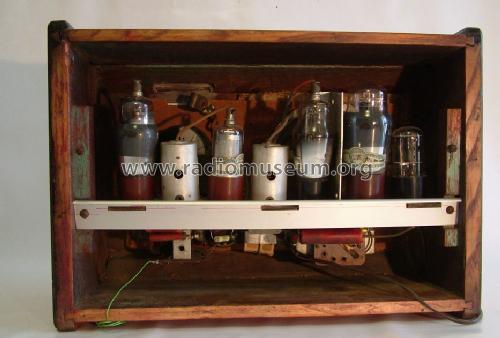

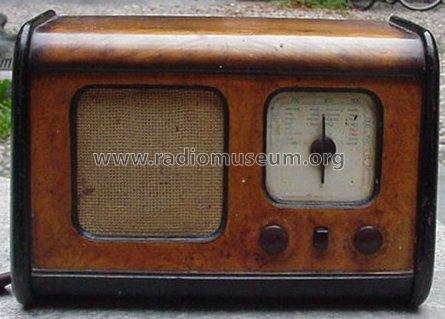

• Model: 48 - Watt Radio; Torino

• Shape
• Tablemodel, with any shape - general.

• Notes

• OM (MW)  590 - 187 m
  OC (SW)  18 - 55 m.

  Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 385)
