• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 30824

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 140; 160; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

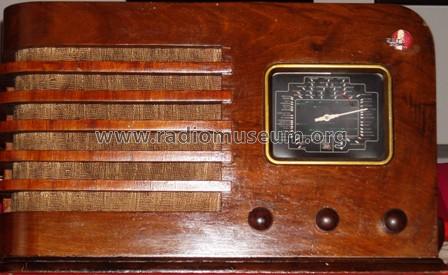

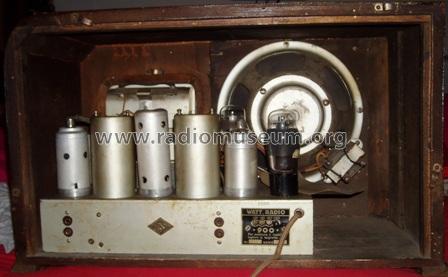

  • Model: 900 - Watt Radio; Torino
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 510 x 310 x 250 mm / 20.1 x 12.2 x 9.8 inch
  • Notes
  • Controllo di tono. Ingresso fono.

  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
