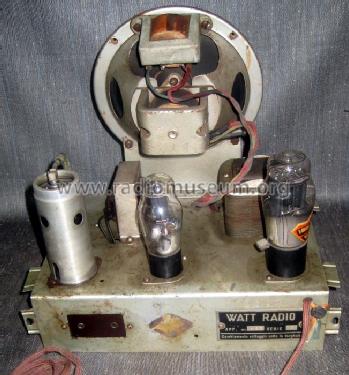

Balilla 1937

Watt Radio; Torino

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 30818

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with diode detector; Reflex
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 140; 160; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Balilla 1937 - Watt Radio; Torino
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Notes
  • Regolazione del volume con attenuazione del segnale dell'antenna.

    The RF amplifier tube 6B7 is reflexed as the first AF stage.
