• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98630

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6K6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125;140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

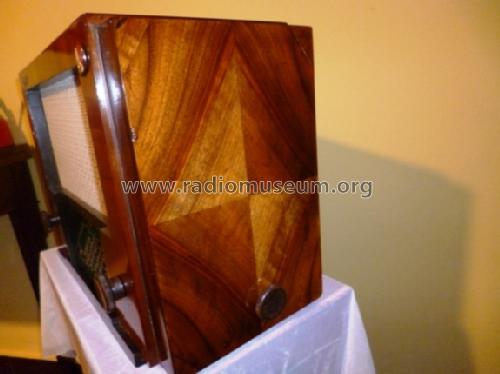

• Model: Super Stella Prima serie - Watt Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 325 x 210 mm / 18.9 x 12.8 x 8.3 inch

• Notes

• Come documentato da uno schema, è indicato anche lo stesso modello con una variante per "3 onde". Lo schema appare però incompleto.

• Net weight (2.2 lb = 1 kg)
• 8.7 kg / 19 lb 2.6 oz (19.163 lb)

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Other Models

• Here you find 194 models, 140 with images and 147 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Watt Radio; Torino
