Taurus

Taurus ; Watt Radio; Torino (ID = 223593) Radio

Taurus ; Watt Radio; Torino (ID = 223594) Radio
Taurus ; Watt Radio; Torino (ID = 1838151) Radio Taurus ; Watt Radio; Torino (ID = 1838152) Radio

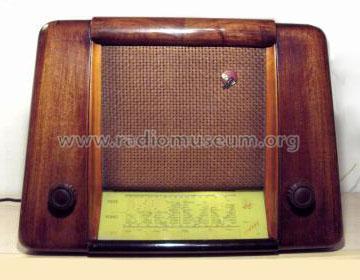

Taurus ; Watt Radio; Torino (ID = 1838153) Radio Taurus ; Watt Radio; Torino (ID = 1838931) Radio
Use red slider bar for more.
Taurus ; Watt Radio; Torino (ID = 1838151) Radio
Watt Radio; Torino: Taurus [Radio] ID = 1838151 920x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model Taurus, Watt Radio; Torino

Country:  Italy
Manufacturer / Brand:  Watt Radio; Torino
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6V6 5Y3
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Taurus - Watt Radio; Torino
Material Wooden case
Notes

Alternative tube set:
6A8G(T) 6K7G(T) 6Q7G(T) 6V6G(T) 5Y3G(T)

Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 382)

Model page created by Pietro Gallia. See "Data change" for further contributors.
