• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108373

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Transset 3 onde - Watt Radio; Torino

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 180 x 80 mm / 9.1 x 7.1 x 3.1 inch

• Notes

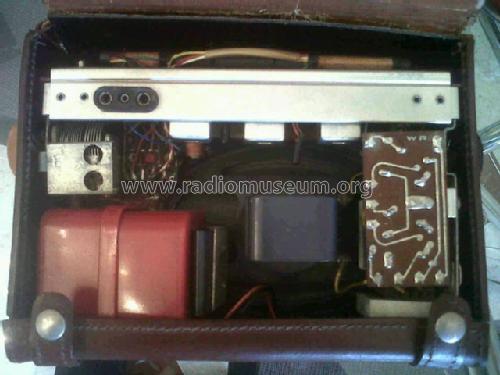

• Mobile in cuoio in diverse colorazioni, con cinghia a tracolla rimovibile.
  Solid leather case, several colour variants.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• - - Data from my own collection

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
