• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176166

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• PCL86 UY85 DM70

• Number of Transistors
• 6

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 AC134

• Main principle
• Superheterodyne (common); ZF/IF 462/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-230 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

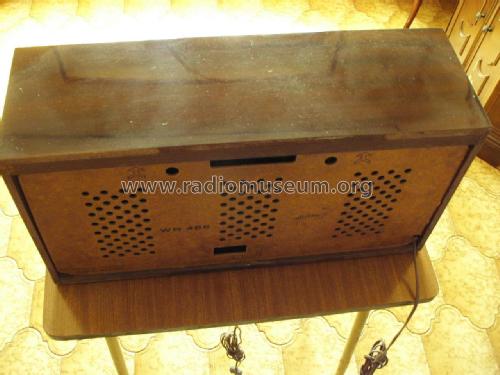

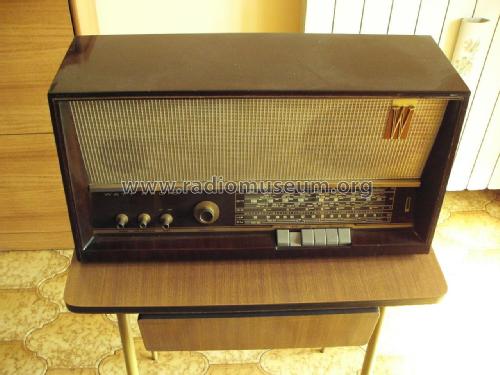

• Model: Transval WR486 - Watt Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 300 x 200 mm / 22.4 x 11.8 x 7.9 inch

• Notes
• Comando per il controllo automatico della sintonia.
  Comando di tonalità bilanciato gravi-acuti.
  Adatto per la ricezione dei programmi in filodiffusione e di tutti i canali TV - VHF.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 62,900.00 ITL

• Mentioned in
• Catalogo ANIE (1965-66)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
