• Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 129341

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.35 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: WR71 - Watt Radio; Torino
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 300 x 200 x 170 mm / 11.8 x 7.9 x 6.7 inch
  • Notes
  • Varianti di colore: avorio e amaranto.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)

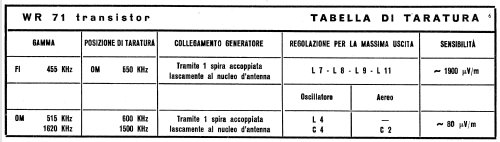

  • Literature/Schematics (1)
  • -- Schematic (Schemario di Apparecchi a Transistori Vol. 3° R. Rosati)
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
