• Country
• Netherlands

• Manufacturer / Brand
• Weco N.V. Radiofabriek; Amsterdam

• Year
• 1929/1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70236

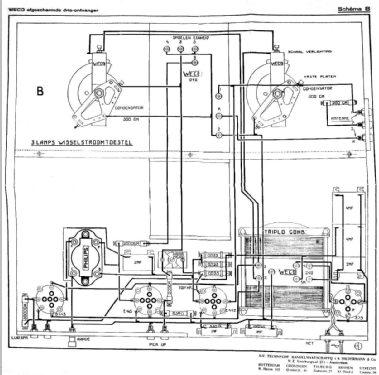

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• E415 E442 B443 373

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

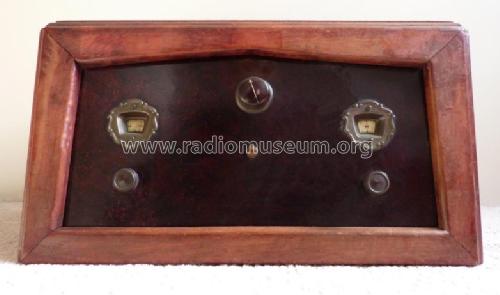

• Model: Algeheel Wisselstroomtoestel [Luxe] - Weco N.V. Radiofabriek;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 440 x 240 x 290 mm / 17.3 x 9.4 x 11.4 inch

• Notes

• This model was available as a "Luxe" model in mahogany (Biedermann catalogue number 5013), as well as a "Standaard" model (in oak).  A DC version was also available. These models could be combined with a Weco loudspeaker cabinet in mahogany (for this "Luxe" model, Biedermann catalogue number 5085) or in oak for the other "Standaard" model.

• Price in first year of sale
• 220.00 Hfl

• External source of data
• Radio Amateur Museum / Frans J.J. Driesens + ISBN 90-76014-04-3.

• Source of data
• -- Original prospect or advert

• Mentioned in
• Radio Historisch Tijdschrift, Nr. 146, september 2013

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
