• Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 24794
    • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

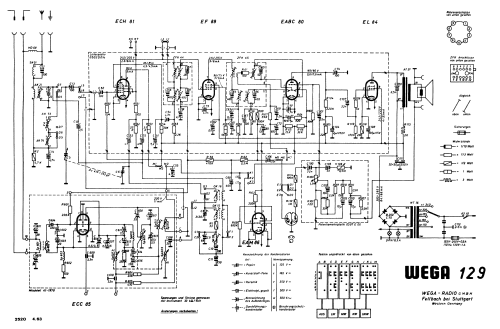

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

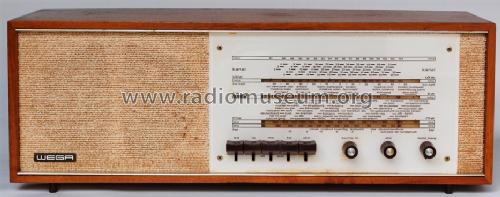

  • Model: 129 [Nussbaum/Teak] - Wega, Württembergische Radio-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 550 x 185 x 165 mm / 21.7 x 7.3 x 6.5 inch
  • Notes
  •
  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Price in first year of sale
  • 334.00 DM
  • External source of data
  • Erb

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Wega,: 129

Threads: 1 | Posts: 1

Auf dem Gerät ist keine Tastenangabe für den Tonabnehmer(TA) vermerkt.

Es funktioniert mit zusammen gedrückter LW und MW Taste.

Lothar Ohm, 14.Oct.15
