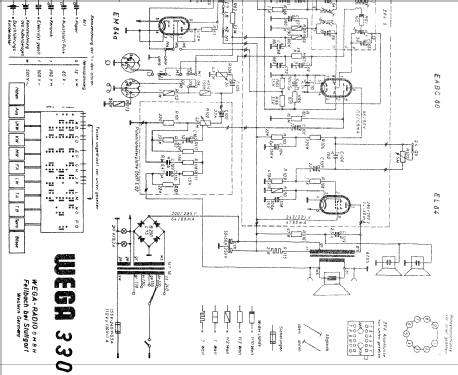

330; Wega, (ID = 352972) Radio

330; Wega, (ID = 2418629) Radio
330; Wega, (ID = 406862) Radio 330; Wega, (ID = 406865) Radio
330; Wega, (ID = 406864) Radio
Use red slider bar for more.
330; Wega, (ID = 406862) Radio
Wega,: 330 [Radio] ID = 406862 933x518
Select picture or schematic to display from thumbnails on the right and click for download.
For model 330 natur, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84a EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 330 [natur] - Wega, Württembergische Radio-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 325 x 235 mm / 23.6 x 12.8 x 9.3 inch
Notes
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 384.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963
