759W; Wega, (ID = 1689446) Radio

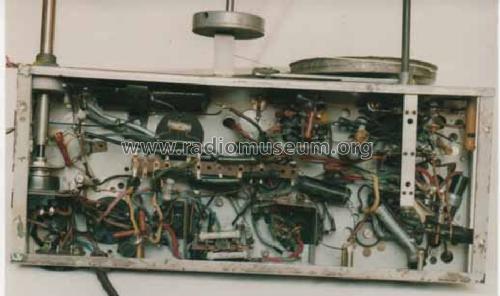

Wega,: 759W [Radio] ID = 1689446 930x758
Select picture or schematic to display from thumbnails on the right and click for download.
For model 759W ohne Urdox U3007, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 759W [ohne Urdox U3007] - Wega, Württembergische Radio-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 370 x 270 mm / 18.9 x 14.6 x 10.6 inch
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
