Bambino 807

Bambino 807; Wega, (ID = 1244126) Radio Bambino 807; Wega, (ID = 1244127) Radio

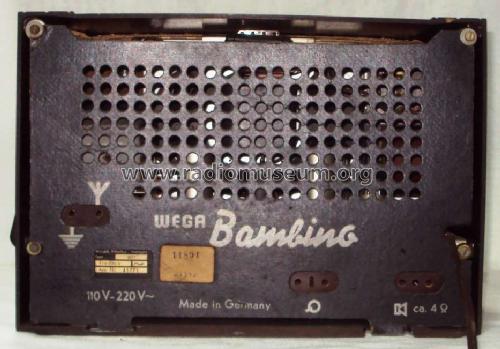

Bambino 807; Wega, (ID = 1244128) Radio Bambino 807; Wega, (ID = 1244129) Radio
Bambino 807; Wega, (ID = 1670023) Radio Bambino 807; Wega, (ID = 1670025) Radio
Use red slider bar for more.
Bambino 807; Wega, (ID = 1244126) Radio
Wega,: Bambino 807 [Radio] ID = 1244126 933x704
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bambino 807, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach:
D_Wega_Bambino 807_Front.jpg

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EBC91 EL84 EM80 EZ80
Main principle Superheterodyne (common); ZF/IF 473 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Bambino 807 - Wega, Württembergische Radio-
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 325 x 225 x 155 mm / 12.8 x 8.9 x 6.1 inch
Notes Tomadas:Ant,HP,Pic-Up.
External source of data Modelo

Model page created by João-Afonso Santos. See "Data change" for further contributors.
