Fox 365W

Fox 365W; Wega, (ID = 106280) Radio
Fox 365W; Wega, (ID = 2173473) Radio Fox 365W; Wega, (ID = 2173472) Radio

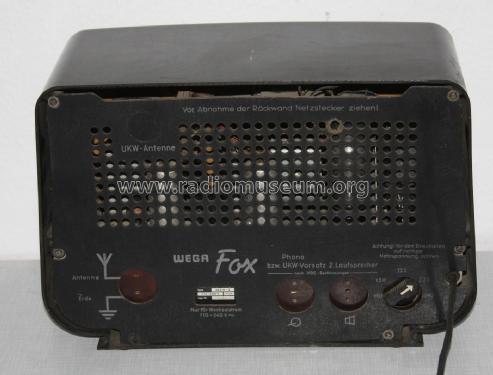

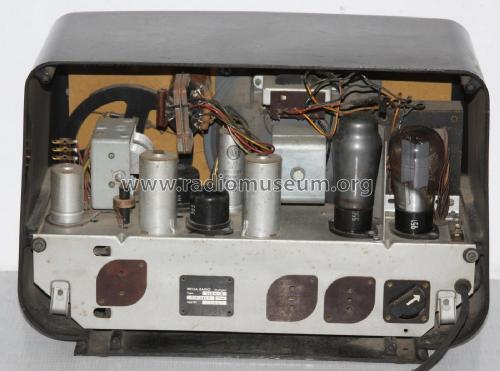

Fox 365W; Wega, (ID = 2173474) Radio Fox 365W; Wega, (ID = 2173475) Radio
Fox 365W; Wega, (ID = 2173476) Radio
Use red slider bar for more.
Fox 365W; Wega, (ID = 2173473) Radio
Wega,: Fox 365W [Radio] ID = 2173473 1400x1079
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fox 365W, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Fox 365W - Wega, Württembergische Radio-
Material Bakelite case
Dimensions (WHD) 420 x 280 x 194 mm / 16.5 x 11 x 7.6 inch
Net weight (2.2 lb = 1 kg) 8.7 kg / 19 lb 2.6 oz (19.163 lb)
Price in first year of sale 225.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (5016)


All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
Here you find 658 models, 579 with images and 380 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
