• Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 19638
    • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

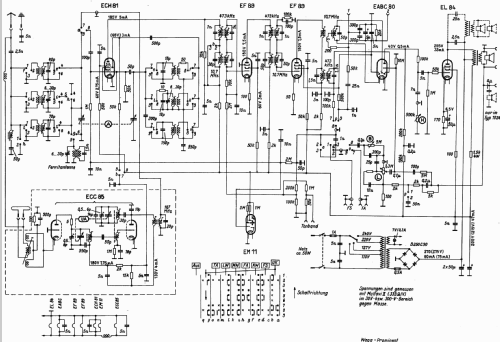

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 473/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 5.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Prominent - Wega, Württembergische Radio-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 630 x 385 x 260 mm / 24.8 x 15.2 x 10.2 inch
  • Notes
  • Auch mit 3D-Raumklang (siehe dort).
  • Net weight (2.2 lb = 1 kg)
  • 13 kg / 28 lb 10.1 oz (28.634 lb)
  • Price in first year of sale
  • 335.00 DM
  • External source of data
  • Erb

 Collections | Museums | Literature

Collections

The model Prominent is part of the collections of the following members.

 Forum

Forum contributions about this model: Wega,: Prominent

Threads: 1 | Posts: 4

In Kürze wird so ein WEGA Prominent bei mir restauriert.Bei den vorangegangenen Reinigungsarbeiten ist mir die Taste "FS" aufgefallen,die,im Gegensatz zur Ferritantennentaste,die anderen Tasten auslöst.Was für eine Funktion hat diese "FS"-Taste?Fernschalter,Fernsehen?

Danke für die Aufklärung

Stefan Kälin

Stefan Kälin, 17.Oct.11

Weitere Posts (4) zu diesem Thema.
