• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19728

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

• Number of Tubes
• 7

• Valves / Tubes
• EF85 EC92 ECH81 EF85 EM11 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Wegaphon S1 - Wega, Württembergische Radio-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 700 x 820 x 400 mm / 27.6 x 32.3 x 15.7 inch

• Notes

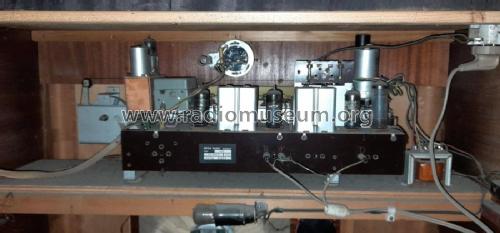

• Rundfunk-Chassis: Wega Regent 1002.
  Phono-Chassis: Dual 275.

• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)

• Price in first year of sale
• 588.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55
