Wegavision 776L
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1969
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 119907
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart

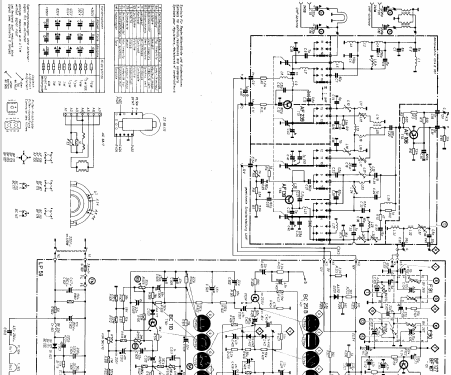

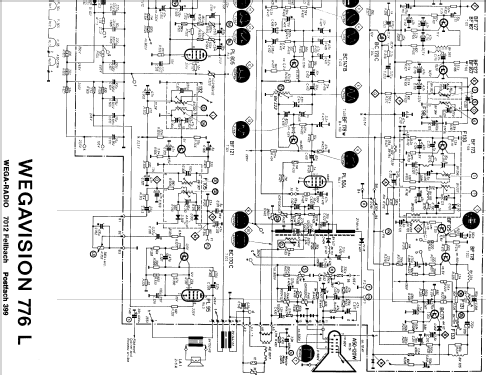

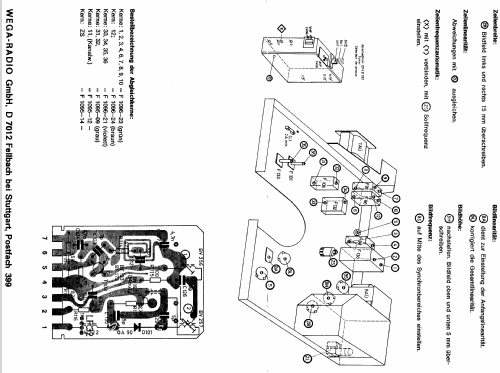

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 16
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 130 cm = 51.2 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Wegavision 776L - Wega, Württembergische Radio-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 560 x 413 x 353 mm / 22 x 16.3 x 13.9 inch
- Notes

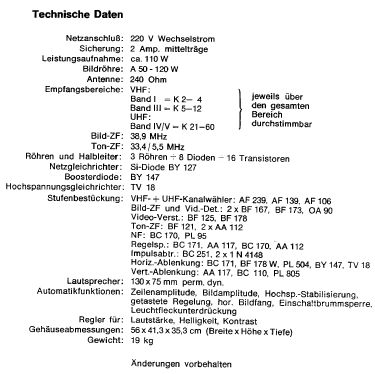

- VHF+UHF Kanalwähler: AF239 AF139 AF106 Bild-ZF+Vid.-Det.:2xBF167 BF173 OA90 Video-Verst.: BF121 2xAA112 NF: BC170 PL95 Regelsp.: BC171 AA117 BC170 AA112 Impulsabtr.: BC251 2x1N4148 Horiz.Abl.: BC171 BF178W PL504 BY147 TV18 Vert.Abl.: AA117 BC110 PL805
- Net weight (2.2 lb = 1 kg)
- 19 kg / 41 lb 13.6 oz (41.85 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Andreas Harmstorf. See "Data change" for further contributors.
