D724U

D724U ; Western Auto Supply (ID = 756731) Radio
D724U ; Western Auto Supply (ID = 2569080) Radio D724U ; Western Auto Supply (ID = 2569081) Radio
D724U ; Western Auto Supply (ID = 2569082) Radio D724U ; Western Auto Supply (ID = 2569084) Radio
D724U ; Western Auto Supply (ID = 2569086) Radio
Use red slider bar for more.
D724U ; Western Auto Supply (ID = 2569080) Radio
Western Auto Supply: D724U [Radio] ID = 2569080 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model D724U, Western Auto Supply Co. (Truetone); Kansas City (MO)

Country:  United States of America (USA)
Manufacturer / Brand:  Western Auto Supply Co. (Truetone); Kansas City (MO)
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A7 6D6 6Q7G 76 6G5 43 43 25Z5
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage AC/DC-set
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: D724U - Western Auto Supply Co.
Notes Speakers 8 and 10 inch.
External source of data Ernst Erb

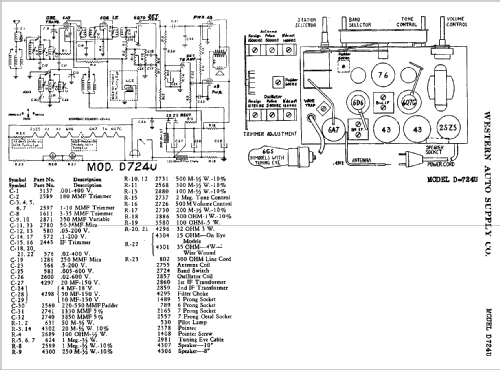

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
