• Country
• Canada

• Manufacturer / Brand
• Canadian Westinghouse, Hamilton

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152541

• • alternative name: Westinghouse Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6L7 6Q7 6F6 5W4

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 25-60 Hz, 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

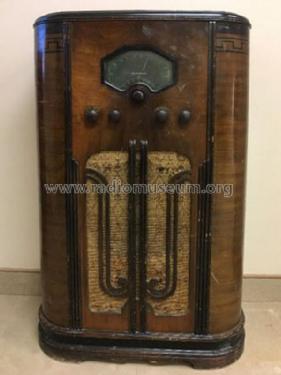

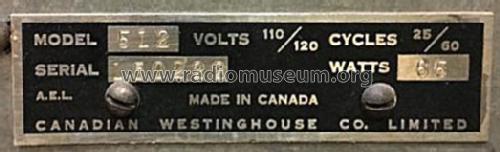

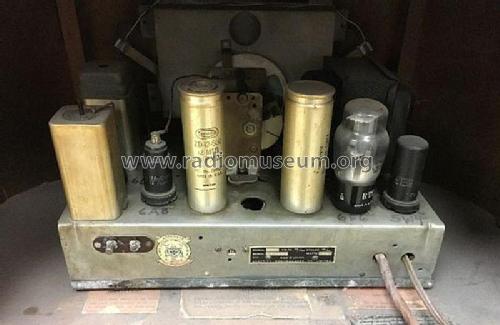

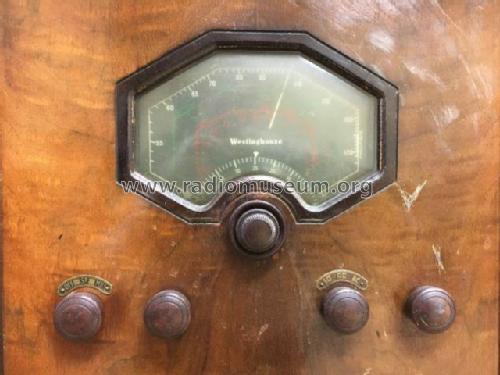

• Model: 512A - Canadian Westinghouse,

• Shape
• Console with any shape - in general

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Westinghouse page 33

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 383 models, 169 with images and 355 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Canadian Westinghouse, Hamilton
