• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148227

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6K7 6H6 6F5 43 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• AC/DC-set / 105 -130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: WR-101 Ch= U6F - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel, low profile (big size).

• Notes

• Caution: Riders schematic shows a 6A7, but in the alignment the 6A8 is mentioned. It seems unlikely to fall back to an older tube. Most probably an error by Rider.

  Stein, Table Top Radios, Vol.1, p 164, shows wrong picture!



• Price in first year of sale
• 44.95 $

• Source of data
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (page 164. wrong picture!)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 7 = 1936 and before (Riders 7-1 , 7-2)

• Literature/Schematics (2)
• Rider's Successful Servicing, Jan. 1936

• Literature/Schematics (3)

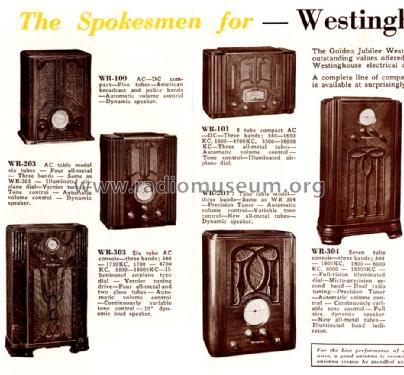

• -- Original prospect or advert (The Westinghouse Folder for 1936.)

• Literature/Schematics (4)
• Machine Age to Jet Age (Vol. 1) (p.311)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
