Standard-Super W; Willisen Wilag, Hans (ID = 1329219) Radio
Willisen Wilag, Hans: Standard-Super W [Radio] ID = 1329219 900x782
Select picture or schematic to display from thumbnails on the right and click for download.
For model Standard-Super W, Willisen (Wilag), Hans Karl Freiherr von Willisen, Oldenburg+Lensahn

Country:  Germany
Manufacturer / Brand:  Willisen (Wilag), Hans Karl Freiherr von Willisen, Oldenburg+Lensahn
Brand

MWL
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner

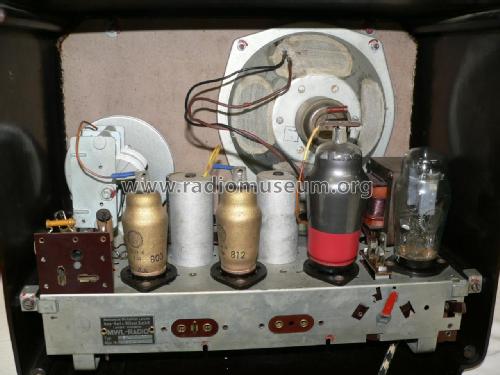

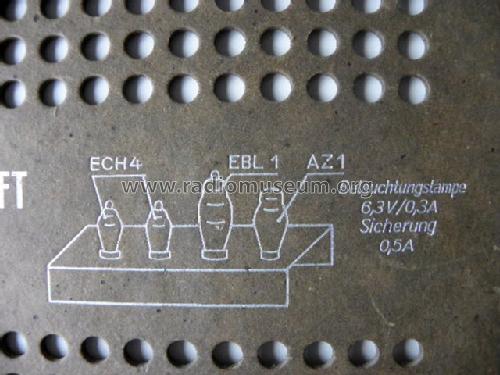

Valves / Tubes 4: ECH4 ECH4 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Standard-Super W - Willisen Wilag, Hans Karl
Material Bakelite case

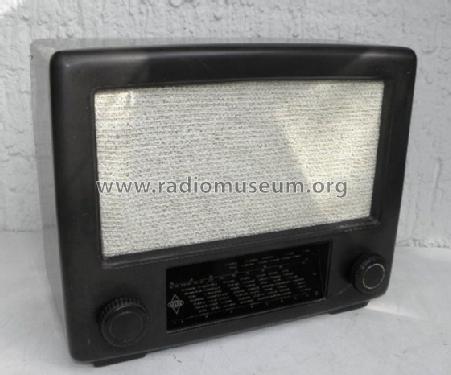

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 360 x 305 x 185 mm / 14.2 x 12 x 7.3 inch
Notes

Keine Netztrennung, Autotrafo !
Gemeinschaftsproduktion Britische Zone !

Siehe auch Standard-Super 1947.

Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkschau (4807)
