• Country
• Italy

• Manufacturer / Brand
• Wundercart; Saronno, VA

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188802

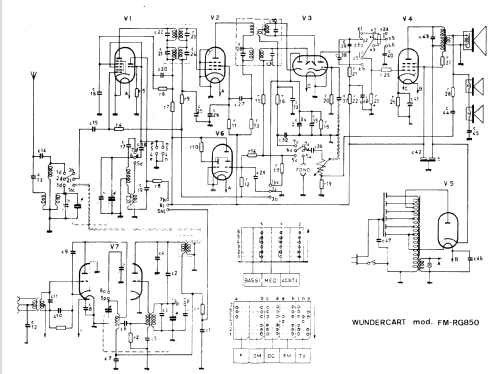

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 EM80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: FM850 - Wundercart; Saronno, VA

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 450 x 290 x 180 mm / 17.7 x 11.4 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• Price in first year of sale
• 40,000.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• Catalogo ANIE (1960-61)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 29 models, 23 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
