Wola I (1) 3265

Wola I 3265; Unitra ZRK, Zaklady (ID = 1206983) Radio
Wola I 3265; Unitra ZRK, Zaklady (ID = 2044381) Radio Wola I 3265; Unitra ZRK, Zaklady (ID = 2044382) Radio
Use red slider bar for more.
Wola I 3265; Unitra ZRK, Zaklady (ID = 2044381) Radio
Unitra ZRK, Zaklady: Wola I 3265 [Radio] ID = 2044381 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wola I (1) 3265, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka:

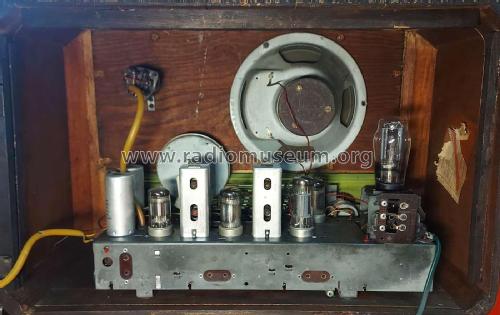

picture taken from polish online auction portal .allegro.pl. Auction number: 6584734155

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1957–1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EF22 EF22 EBL21 EM4 AZ1
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Wola I 3265 - Unitra ZRK, Zaklady Radiowe im
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 380 x 240 mm / 22.4 x 15 x 9.4 inch
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Here you find 212 models, 180 with images and 86 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
