154

154; Zenit, Prelouc (ID = 90583) Radio
154; Zenit, Prelouc (ID = 90584) Radio 154; Zenit, Prelouc (ID = 90586) Radio

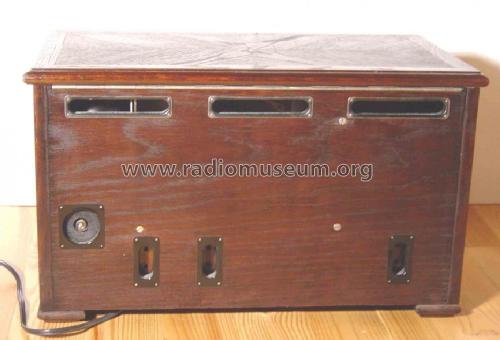

154; Zenit, Prelouc (ID = 90662) Radio 154; Zenit, Prelouc (ID = 90585) Radio
154; Zenit, Prelouc (ID = 90658) Radio 154; Zenit, Prelouc (ID = 90661) Radio
Use red slider bar for more.
154; Zenit, Prelouc (ID = 90584) Radio
Zenit, Prelouc: 154 [Radio] ID = 90584 933x621
Select picture or schematic to display from thumbnails on the right and click for download.
For model 154, Zenit, Prelouc

Country:  Czechoslovakia
Manufacturer / Brand:  Zenit, Prelouc
alternative name

Myslik-Hyrsovsky, J.V. akc. spol., Prelouc
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1204 REN1104 REN1004 RE134 RGN1054
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 154 - Zenit, Prelouc
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 482 x 280 x 263 mm / 19 x 11 x 10.4 inch
Notes Wooden case, top lid, bakelite front panel. By overall design there is clear close relationship to Siemens-Halske. See Siemens 41W/134

Model page created by Eduard Pavlik. See "Data change" for further contributors.



All listed radios etc. from Zenit, Prelouc
Here you find 27 models, 15 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
