28T926E "Saratoga" Ch= 28F25

Zenith Radio Corp.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1949
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 248490
    • alternative name: Chicago Radio Lab

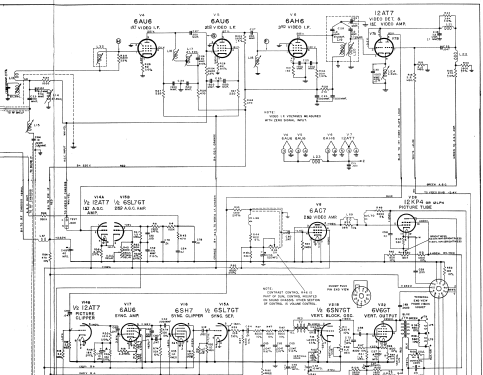

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 28
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • Power out
  • 3.5 W (6.5 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 28T926E "Saratoga" Ch= 28F25 - Zenith Radio Corp.; Chicago,
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • The Zenith 28T926E is a 12" round CRT porthole styled b/w TV with US FCC standard VHF turret tuner channels 2 thru 13. Equipped with split chassis 28F25 and picture tube 12KP4 or 12LP4.  Has blonde wooden cabinet. Power consumption is 325W.

    The picture tube used in this model is a conventional clear glass picture tube.  This model was also available using a Glare-Ban "Black" picture tube as noted in the table below:

    Model Number Chassis Cabinet Picture Tube
    28T926E 28F25 Blonde 12KP4 or 12LP4
    28T926R-OX 28F25-OX Blonde 12UP4
    28T926R 28F25 Mahogany 12KP4 or 12LP4



  • Mentioned in
  • Zenith Service Manual TV 3
  • Author
  • Model page created by Hans Amberger. See "Data change" for further contributors.
