SF2570Y Ch= 9B25 + 7B31

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603249) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603250) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603251) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603252) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603253) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603255) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603256) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603257) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603259) Radio

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 603260) Radio
SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 1358721) Radio SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 1358720) Radio
SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 1358724) Radio SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 1358723) Radio
SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 1358725) Radio SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 1358722) Radio
SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 1358726) Radio
Use red slider bar for more.

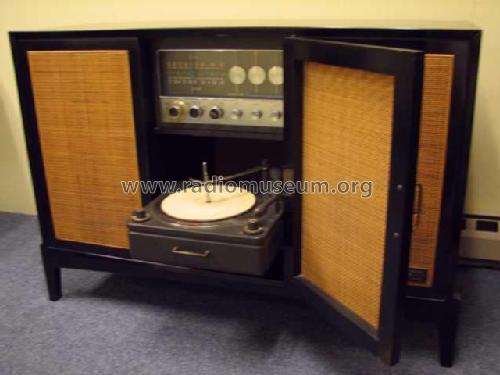

SF2570Y Ch= 9B25 + 7B31; Zenith Radio Corp.; (ID = 1358721) Radio
Zenith Radio Corp.;: SF2570Y Ch= 9B25 + 7B31 [Radio] ID = 1358721 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model SF2570Y Ch= 9B25 + 7B31, Zenith Radio Corp.; Chicago, IL:
With courtesy by Ebayseller bigapple59.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 17: 6BJ6 12AT7 12AT7 6BA6 6BA6 6AU6A 6BC7 ECC83 12AU7 12AX7 12AU7 12AU7A EL84 EL84 EL84 EL84 5U4GB
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: SF2570Y Ch= 9B25 + 7B31 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes The Zenith Model SF2570Y is an AC operated 17 Tube AM-FM Tuner and Stereo Amplifier wit 4 Speed Automatic Record Changer.

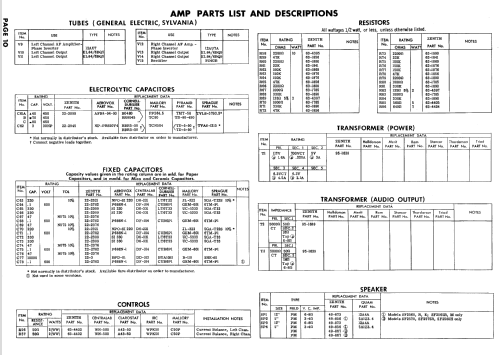

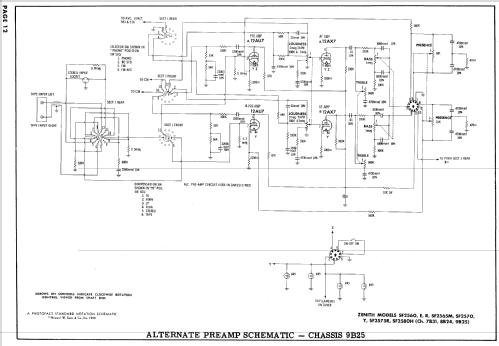

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 8-59, Set 453, Folder 15)

Model page created by Egon Penker. See "Data change" for further contributors.
