Selectric U4 (4A) US36

Zerdik; Wien

  • Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 11065

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 128 kHz
  • Power type and voltage
  • AC/DC-set
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

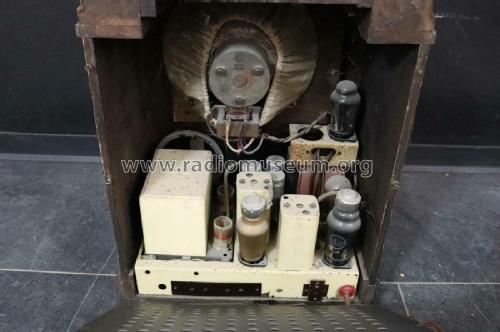

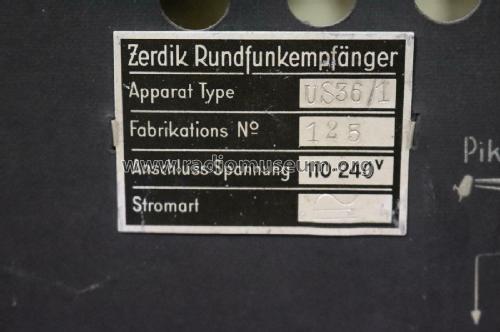

  • Model: Selectric U4 US36 - Zerdik; Wien
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
