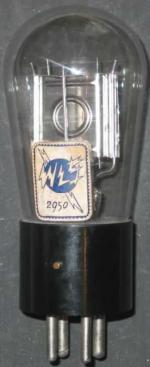

Antique radios, Old Time Radios
2950
|
Country:
United States of America (USA)
|
|
Brand:
|
|
| Tube type: |
Gas Triode Detector |
| |
Ca. 1925 up to 1945 very rare. *** |
|
| Identical to |
2950
= 4602_WLS
|
| Similar
Tubes |
Normally replaceable-slightly different:
UX200
|
| Base |
UX-Base (4 Pins (2 thick, USA 1924, UX)
|
| Was used by |
Radio/TV-reception etc. |
| Filament |
Vf 5 Volts / If 1 Ampere / Direct / Battery = |
| Description |
The American company Sears Roebuck, with its head office in Chicago, sold the standard range of American designed and made radio tubes from 1925. A few small manufacturers made these tubes and they are branded "WLS" (Worlds Largest Store). The company allotted each tube with a four digit type number. The company also sold regular branded tubes such as Radiotron, Cunningham, Solartron and Meteor.
This tube used as a supersensitive detector in amateur receiving sets.
Text in other
languages (may
differ)
|
Dimensions (WHD)
incl. pins / tip |
45 x 110 x mm / 1.77 x 4.33 x inch |
| Weight |
40 g / 1.41 oz |
| Information source |
-- Collector info (Sammler) Sears Roebuck catalog pages
Tube Lore (I) page 16.
|
|
2950: O.F.
Otto Frosinn
|
Just Qvigstad
|
|
