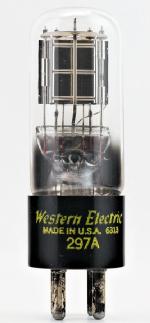

297A
|
Country:
United States of America (USA)
|
|
| Identical to |
297A
|
| Base |
UV-Base (4 Pins+Bayonet, USA 1914 WE)
|
| Filament |
Vf 1.75 Volts / If 0.35 Ampere / Direct |
| Description |
Argon triode Thyratron. 250 V PIV, 10 mA average anode current, 60 mA peak.
Initially used in the test protection circuit of the 1A Thermostat, BTL test circuits, and No.&5 crossbar telephone circuits. Production in 1978 was 915. Manufacture discounted 1987.
|
| Information source |
Tube Lore (I)
- - Manufacturers Literature
|
|
|
|
Just Qvigstad
|
|
