4677

Information - Help

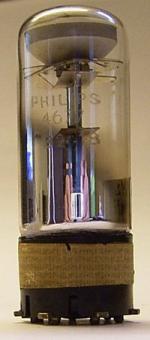

ID = 19121

Country:
Netherlands
Brand: Philips; Eindhoven (tubes international!); Miniwatt
Developer: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  Mag. Eye, 4 shadow angles   Indication
Identical to 4677 = AM1
Similar Tubes
Heater different:
  4678 ; EM1
First Source (s)
May.1936 : Philips Bulletin # D 36
Successor Tubes 1936   AM1

Base Europe side contact base P (P8A)
Filament Vf 4 Volts / If 0.3 Ampere / Indirect / Parallel, (AC/DC)
Description

4677 was the preliminary designation for the AM1, before letter "M" was assigned for indicator tubes. Babani as well as "Franzis Röhren-Taschen-Tabellen" erroneusly state AM2 as an equivalent.


Text in other languages (may differ)

4677: RGO
René Goebel


4677: Telefunken Werkstattbuch
Wolfgang Bauer



Usage in Models 5= 1936

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5
