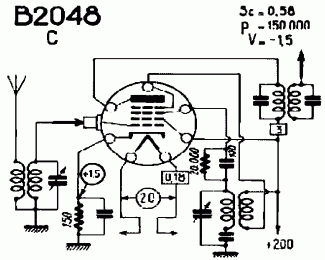

B2048

Information - Help
ID = 8777

Country:
Netherlands
Brand: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  HEXODE   Frequency converter
Identical to B2048 = RENS1824 = X2818 = NSS185
Similar Tubes
Normally replaceable-slightly different:
  FH2018 ; HH2018
Heater different:
  E448
Successor Tubes CK1

Base Europe 7-Pin (C7A, C, 1933) (Codex=Lf)
Filament Vf 20 Volts / If 0.18 Ampere / Indirect / Series, DC
Literature Taschenbuch zum Röhren-Codex 1948/49
  B2048: ficha de valvulas
Getulio Jimenez-Gomez

B2048: Telefunken Werkstattbuch
Wolfgang Bauer


B2048: RVF-Röhrenbuch-M1,1947
Anonymous 15 Collector


Usage in Models 4= 1933

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):4
