BCW77

Information - Help
ID = 80527

Country:
Germany
Brand: Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
Tube type:  Transistor   Universal
Identical to BCW77
Similar Tubes
Normally replaceable-slightly different:
  2N2219 ; 2N2297 ; BFY51

Base Wires
Description

NPN silicon planar medium power transistor for universal purpose
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
9 x 7 x 8 mm / 0.35 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   TTT 1981 Steidle, Towers ITVL

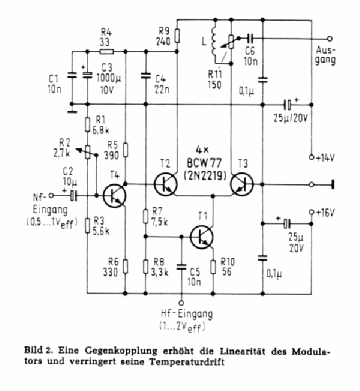

BCW77: Funkschau 8/73 S.259
Egon Strampe

to_39~~60.gif BCW77: TTT Steidle 1981
Günther Stabe † 19.8.20
