BD232

Information - Help
ID = 36339

Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type:  Transistor   Power/Output
Identical to BD232
Similar Tubes
Normally replaceable-slightly different:
  2SC1520 ; 2SC1565 ; 2SC1569 ; BD127 ; BD128 ; BD129 ; BD157 ; BD158 ; BD159 ; BD171 ; BD172 ; BD173 ; BF382 ; BF457 ; BF458 ; BF459 ; MJE340 ; MJE344 ; MJE345
Different maximum ratings:
  2SC1124
Other base and data slightly different:
  2N6176 ; 2SC515 ; 2SD24 ; MPS-U03
First Source (s)
Mar.1975 : -- Collector info (Sammler)

Base Wires
Description

NPN silicon planar transistor for high-voltage video applications.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
8 x 12 x 3 mm / 0.31 x 0.47 x 0.12 inch
Weight 3 g / 0.11 oz
Information source -- Collector info (Sammler)   KTT 1969/70, TTT Steidle 1981

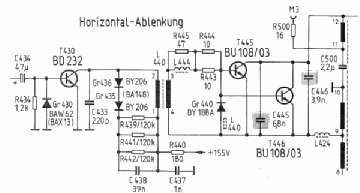

BD232: Funkschau 5/80
Egon Strampe

to126_ttt_1.gif BD232: TTT Steidle 1981
Günther Stabe † 19.8.20

BD232: Valvo Transistoren, 1974
Anonymous 10 Collector

More ...
Usage in Models 1= 1974

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
