CK512AX

Information - Help
ID = 9843

Country:
United States of America (USA)
Brand: Raytheon Mfg. Co.; Cambridge, MA
Tube type:  Beam Power Tube   Audio Frequency
Identical to CK512AX = 512AX
First Source (s)
21.Aug.1947 : -- Original-techn. papers. Raytheon, tentative data

Base Subminiatur (wire-ends, flat) B5A
Filament Vf 0.625 Volts / If 0.02 Ampere / Direct
Description

T3x2 flat press subminiature pentode intended for use as audio or DC amplifier in wearable or portable instruments, including hearing aids.
Pinout: 1(red dot)=anode, 2=screen, 3=filament, 4=g1, 5=filament Vf=0.625V, If=20mA. Va max=45V, Vsg=45V. No power limitation, since you can't draw enough current to do anything bad.

Pentode mode: gm=160uS. Triode mode:gm=250uS, Ra=35k, MU=9.

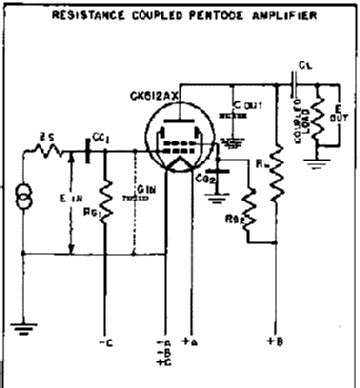

Reasonable amplifier bias points: Pentode: 0.7V bias. Va=22.5V, Vsg=27V, Anode supply=45V. anode resistor=180k. Ia=.12mA, Isg=.06mA. Triode: 0.6V bias. Va+sg=22.5V, Anode supply=45V, load resistor=100k, Ia+sg=.2mA.
The tube 6088 has the same pinout but Vf=1.25V at 20mA and many other differences in operation.


Information source Taschenbuch zum Röhren-Codex 1948/49
- - Manufacturers Literature   Raytheon, March 1, 1956

CK512AX: Manufacturer's Literature
Emilio Ciardiello

ck512ax_sock.png CK512AX: Essential Characteristics
Anonymous 15 Collector


Just Qvigstad
CK512AX: Raytheon Manual
Heinz Höger

More ...
Usage in Models 2= 1947?? ; 1= 1948? ; 1= 1954 ; 2= 1956? ; 1= 1959? ; 1= 1960 ; 1= 1961?? ; 1= 1968

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):10
