ELL1

Information - Help
ID = 2762

Country:
Europe
Brand: Common type Europe tube/semicond.
Developer: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  Double Pentode   Power/Output
Identical to ELL1
Similar Tubes
Multiple differences or of other kind:
  R204_RT ; R224
First year Jul.1938 Tube leaflet collection E.Erb Philips-bulletin extra ed.=Jul+Philips Book = Apr.
First Source (s)
Jul.1938 : Philips Bulletin
Predecessor Tubes EL2
Successor Tubes 1947   ELL80   EL42   EL95

Base Europe side contact P8A (Au P, 8SC) (Codex=S)
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.45 Ampere / Indirect / Specified voltage AC/DC
Description

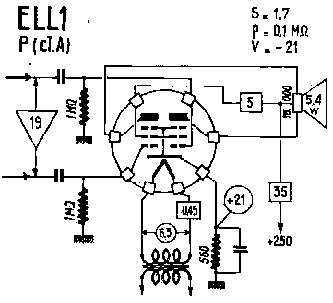

Car radio push-pull twin output pentode
The ELL1 was designed to achieve a comparatively high output power of 5.5 watts at low heater- and plate current, yet its quite-plate + screen current at 35 mA was much higher as with the competing twin output triode EDD11 at only 7 mA
[Jacob Roschÿ,6Apr2003]

The ELL1 also is listed in a British Tungsram leaflet of August 1938.
