G580

Information - Help
ID = 46578

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Solid-State-Diode   Universal
Identical to G580
Similar Tubes
Normally replaceable-slightly different:
  AAZ13

Base Wires
Filament Solid State
Description Germanium bonded diode for universal purpose.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
3 x 8 x mm / 0.12 x 0.31 x inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70

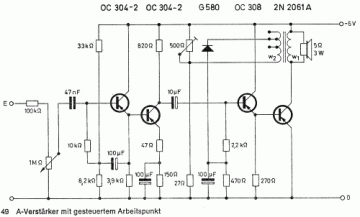

  G580: ITT Schaltbeispiele 1967 Nr.49
Günther Stabe † 19.8.20

G580: DVT 1971 ECA
Günther Stabe † 19.8.20



Usage in Models 2= 1966 ; 2= 1967 ; 1= 1971

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5
