GD75232

Information - Help
ID = 71777

Country:
United States of America (USA)
Brand: Texas Instruments, Dallas
Tube type:  IC - Integrated Circuit
Identical to GD75232

Base SPECIAL TUBEBASE in general
Was used by Industrial
Description

Aufbau/Content: IC (pro Driver: 5 Trans., 8 Widerst., 8 Dioden; pro Receiver: 3 Trans., 6 Widerst., 1 Diode);
Form/Case/Outline: DIP-20 | SOP-20 | SSOP-20;
Applikation/Type: Bus/Line Transceivers, RS-232;
Daten/electr.data: Vcc: +/- 9 V; Icc: ~19 mA; Pd: __ mW; t op: 0...70 °C.
-


Dimensions (WHD)
incl. pins / tip
25 x 7 x 8 mm / 0.98 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

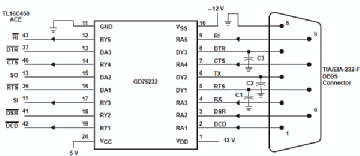

GD75232: Texas Instruments
Günther Stabe † 19.8.20

gd75232_s.png GD75232: Texas Instruments
Günther Stabe † 19.8.20

GD75232: Texas Instruments
Günther Stabe † 19.8.20
