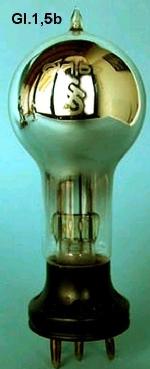

GL1,5b
|
Country:
Germany
|
|
| Identical to |
GL1,5b
|
| First Source
(s) |
01.Mar.1929 : Funk Bastler #9
|
| Base |
Europe 5-Pin , B5 (Eu O, F, O5A) 1928
|
| Filament |
Vf 1.8 Volts / If 9 Ampere / Direct |
| Description |
Zweiweg-Gasgleichrichter für 2x125 V Trafospannung.
Im Gegensatz zur GL1,5a, die nur 1,5 V Heizung, 2x 55 V Trafospannung und etwa halbe Leistung hat.
|
Dimensions (WHD)
incl. pins / tip |
80 x 215 x 80 mm / 3.15 x 8.46 x 3.15 inch |
| Information source |
|
|
GL1,5b: Beier, RTB 1953
Wolfgang Eckardt
|
Just Qvigstad
|
GL1,5b: Güntherschulze, Elektr.Gleichrichter u. Ventile, 2.A.
Wolfgang Eckardt
|
|
|
|
|
