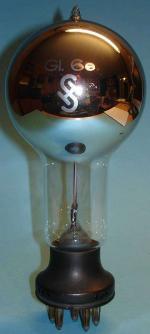

GL6e

Information - Help
ID = 18332

Country:
Germany
Brand: Siemens; D (S.& Halske / S. Electrogeräte)
Tube type:  Full-Wave Rectifier gas filled   Power-supply
Identical to GL6e
First year 1929 Tube leaflet collection E.Erb Analysis by original leaflets

Base SPECIAL TUBEBASE in general (Codex=Sp 37)
Filament Vf 2.2 Volts / If 13 Ampere / Direct
Description Höhe 235mm
Kolbendurchmesser 100 mm
Ua = 35 ... 40 V
Ia = 6 A max (12 Zellen max.)
Weight 165 g / 5.82 oz
Literature Taschenbuch zum Röhren-Codex 1948/49

GL6e: Sammlung GJ
Anonymous 544 Collector



Usage in Models 1= 1930??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1

Collection of a member from D
