KT36

Information - Help
ID = 25141

Country:
Great Britain (UK)
Brand: Osram-Valves GB (not MO-Valves)
Developer: Osram-Valves GB (not MO-Valves)
Tube type:  Screen-grid Tetrode   Power/Output
  Ca. 1925 up to 1945 rare.
Identical to KT36
Base Octal (Int.Octal, IO) K8A, USA 1935 Top contact with a cap.
Was used by Radio/TV-reception etc.
Filament Vf 26 Volts / If 0.3 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Description

- Va 250V - Va (pk) 4kV - Vg2 200V - Pa 10W - Pg2 3W


Dimensions (WHD)
incl. pins / tip		 45 x 133 x mm / 1.77 x 5.24 x inch
Information source - - Manufacturers Literature   Osram Valves - April 1952
Universal Vade-Mecum, Electron Valves and Semiconductor Devices   Pages 508 & 509
kt36_sockel.gif KT36: M.N.
Michael Niermann

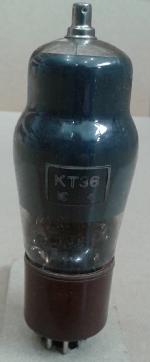

Just Qvigstad 		kt36_1.png
KT36: own collection
Peter den Boer
More ...
Usage in Models 1= 1948 ; 1= 1949? ; 1= 1949 ; 6= 1950 ; 3= 1951 ; 2= 1952 ; 6= 1953 ; 1= 1954
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):21

Collection of

Frank Cuffe (IRL)
Robert Gillespie (USA)
Michael Niermann (D)
