LM2409

Information - Help
ID = 67400

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  IC - Integrated Circuit   Indication
Identical to LM2409

Base SPECIAL TUBEBASE in general
Description

Aufbau/internal: IC (per Channel: >6 Trans., >10 Widerst.);
Form/Case/Outline: SIP-11-K / Multiwatt-11 (LM2409T);
Typ/Content: Monolithic Triple 9.5 ns RGB CRT Driver for Color TV up to 1024x768 resolutions, 70 Hz refresh, <75 MHz;
Daten/electr.data: Vcc: 60...85 V; Vbb: 8...15 V; Vin: 0...5 V; Vout: 15...75 V; Icc: 8 mA per channel; tmax case: -20...+100 °C;
-


Dimensions (WHD)
incl. pins / tip
20 x 18 x 4 mm / 0.79 x 0.71 x 0.16 inch
Weight 4 g / 0.14 oz
Information source - - Manufacturers Literature   National Semiconductor

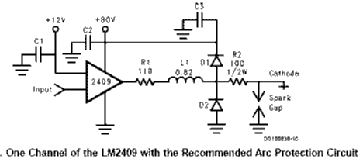

LM2409: NSC
Günther Stabe † 19.8.20

lm2409_s.png LM2409: NSC
Günther Stabe † 19.8.20

LM2409: NSC
Günther Stabe † 19.8.20
