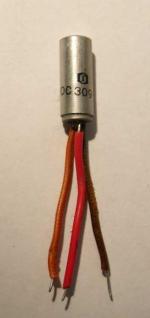

OC309

Information - Help
ID = 34569

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Transistor   Audio Frequency
Identical to OC309
Similar Tubes
Normally replaceable-slightly different:
  GC123 ; OC829 ; OX7021
Different maximum ratings:
  OC308
First Source (s)
Mar.1958 : -- Collector info (Sammler)
Predecessor Tubes OC307

Base Wires
Filament Solid State
Description PNP germanium junction transistor intended as switch or AF amplifier;

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
6 x 16 x mm / 0.24 x 0.63 x inch
Weight 2 g / 0.07 oz
Information source -- Collector info (Sammler)   TVT 1979/80 ECA
  OC309: ITT Schaltbeispiele 1967
Günther Stabe † 19.8.20

OC309: BG
Bernd Grupe


OC309: TTT Steidle 1981
Günther Stabe † 19.8.20



Usage in Models 1= 1959 ; 2= 1967

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3
