OC816

Information - Help
ID = 35087

Country:
Germany
Brand: Werk für Bauelemente der Nachrichtentechnik (WBN), Teltow, VEB, RFT (Ostd.) - vorm. DRALOWID
Developer: Werk für Bauelemente der Nachrichtentechnik (WBN), Teltow, VEB, RFT (Ostd.) - vorm. DRALOWID
Tube type:  Transistor   Audio Frequency
Identical to OC816
Similar Tubes
Other shape (e.g. bulb type):
  GC116
Normally replaceable-slightly different:
  TF66
Different maximum ratings:
  OC817 ; OC818
First Source (s)
Nov.1957 : - - Manufacturers Literature
Successor Tubes OC825   GC116
Base Wires
Description

PNP germanium junction transistor


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 10 x 10 x 5 mm / 0.39 x 0.39 x 0.20 inch
Weight 2 g / 0.07 oz
Information source -- Collector info (Sammler)   KTT 1969/70
- - Manufacturers Literature   WBN Transistorkatalog 1957

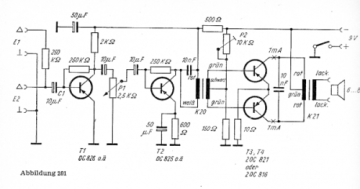

OC816: Radiobasteln-leicht gemacht
Egon Strampe
ju_s_4.gif OC816: KTT 1969/70
Günther Stabe † 19.8.20
More ...
OC816: Hersteller
Karl-Heinz Entrich † 7.21
More ...
Usage in Models 1= 1959 ; 1= 1961? ; 3= 1961 ; 1= 1962? ; 1= 1962 ; 1= 1963? ; 1= 1963 ; 1= 1964 ; 1= 1965
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):11

Collection of

Jörg Kulbe (D)
Oskar Elm (D)
Helmut Matysik (D)
Karl-Heinz Entrich † 7.21 (D)
Nikolaus Löwe (D)
Egon Strampe (D)
